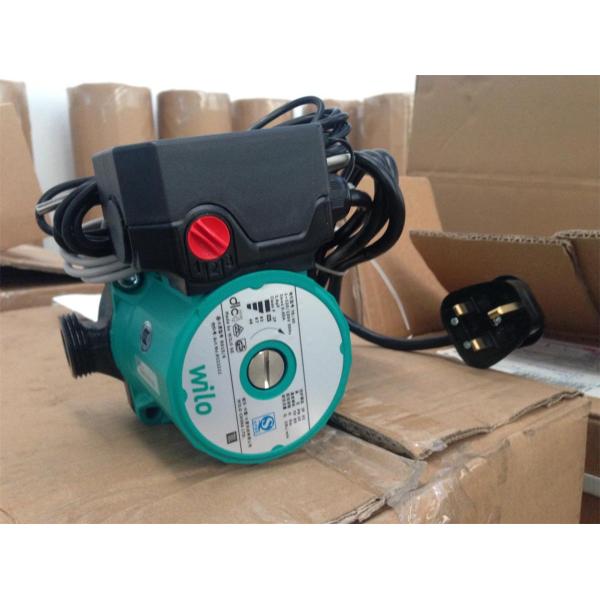

Wilo RS15/6 hot water circulation pump with temperature difference controller

Product Categories

CHANGZHOU RAVEN NEW ENERGY TECHNOLOGY LTD

Contact Now

Wilo RS15/6 hot water circulation pump with temperature difference controller

Name: Wilo RS156 hot water circulation pump with temperature difference controller
Brand: RAVEN NEW ENERGY
Price: 96 USD

Wholesale Wilo RS15/6 hot water circulation pump with temperature difference controller from china suppliers

Brand Name : RAVEN NEW ENERGY

Model Number : RS15/6

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Price : 96USD/PCS

Payment Terms : T/T, Western Union

Supply Ability : 2000PCS / MONTH

Delivery Time : 5Days

Packaging Details : carton

Model : RS15/6

Input voltage : 220V~240V AC

Range of temp. measuring : 0-99℃

Power consumption : 0.5W

Input signals : T1--Silicon cable =280℃; T2--PVC cable =105℃

Range of environment temp : -10~50℃

Water protection grade : IP40

Contact Now

Wilo RS15/6 hot water circulation pump with temperature difference controller

Wilo RS15/6 hot water circulation pump with temperature difference controller

Suitable for Split pressurized solar water heater system

Main technical data
1. Input voltage: 220V~240V AC
2. Power: =0.5W
3. Accuracy of temp. measuring: ＜1℃
4. Range of temp. measuring: 0~99℃
5. Input signals: T1--Silicon cable =280℃; T2--PVC cable =105℃
6. Range of environment temp.: -10~50℃
7. Water protection grade: IP40

Application

Example 1
T circulation between solar collector and storage

Wilo RS15/6 hot water circulation pump with temperature difference controller

Example 2
T circulation between storage and heater

Wilo RS15/6 hot water circulation pump with temperature difference controller

Example 3
T circulation between storage and hot water

Wilo RS15/6 hot water circulation pump with temperature difference controller
